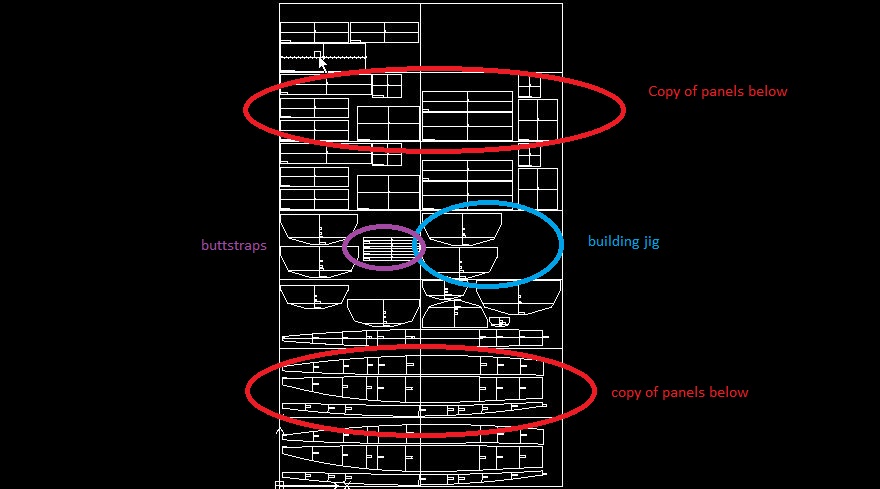

During the weekend I created a spreadsheet with all the small plywood parts. For example the foredeck, aft deck, centerboard case, seat panels, floorboard panels and the panels for rudder and centerboard. Next I created a perl script to create a YOT HDF file out of the spreadsheet. And I added code to the YDSM module of YOT Hull Design to nest the small parts with the hull panels and stations. Finally exported the result to DXF format and imported into DraftSight. The screen dumps shows the different bits of the nesting exercise.
