20190828

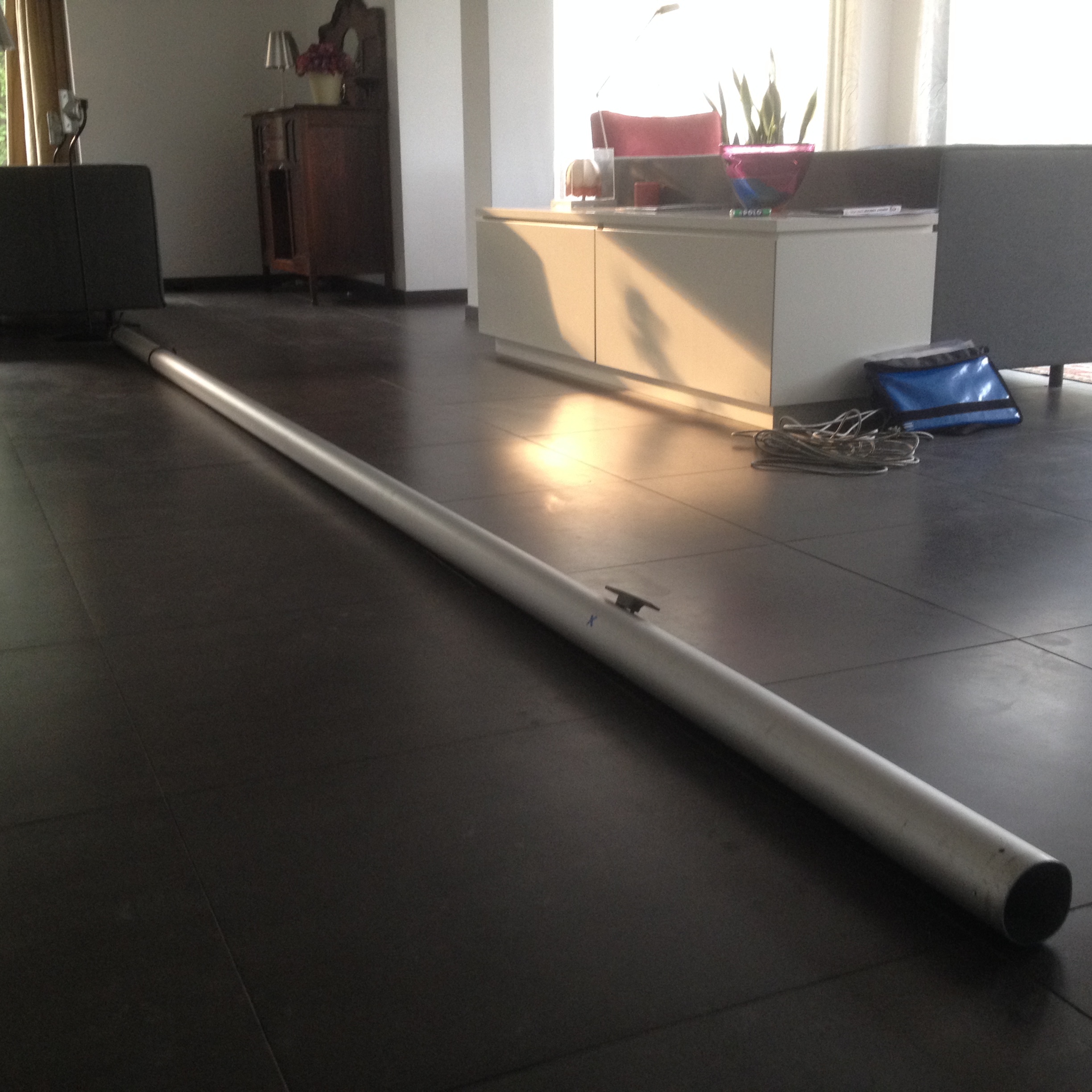

Over the weekend I decided to continue with the same mast but to install it upside down. First I marked the kink in the mast and reinstalled the fittings upside down with the kink facing aft.

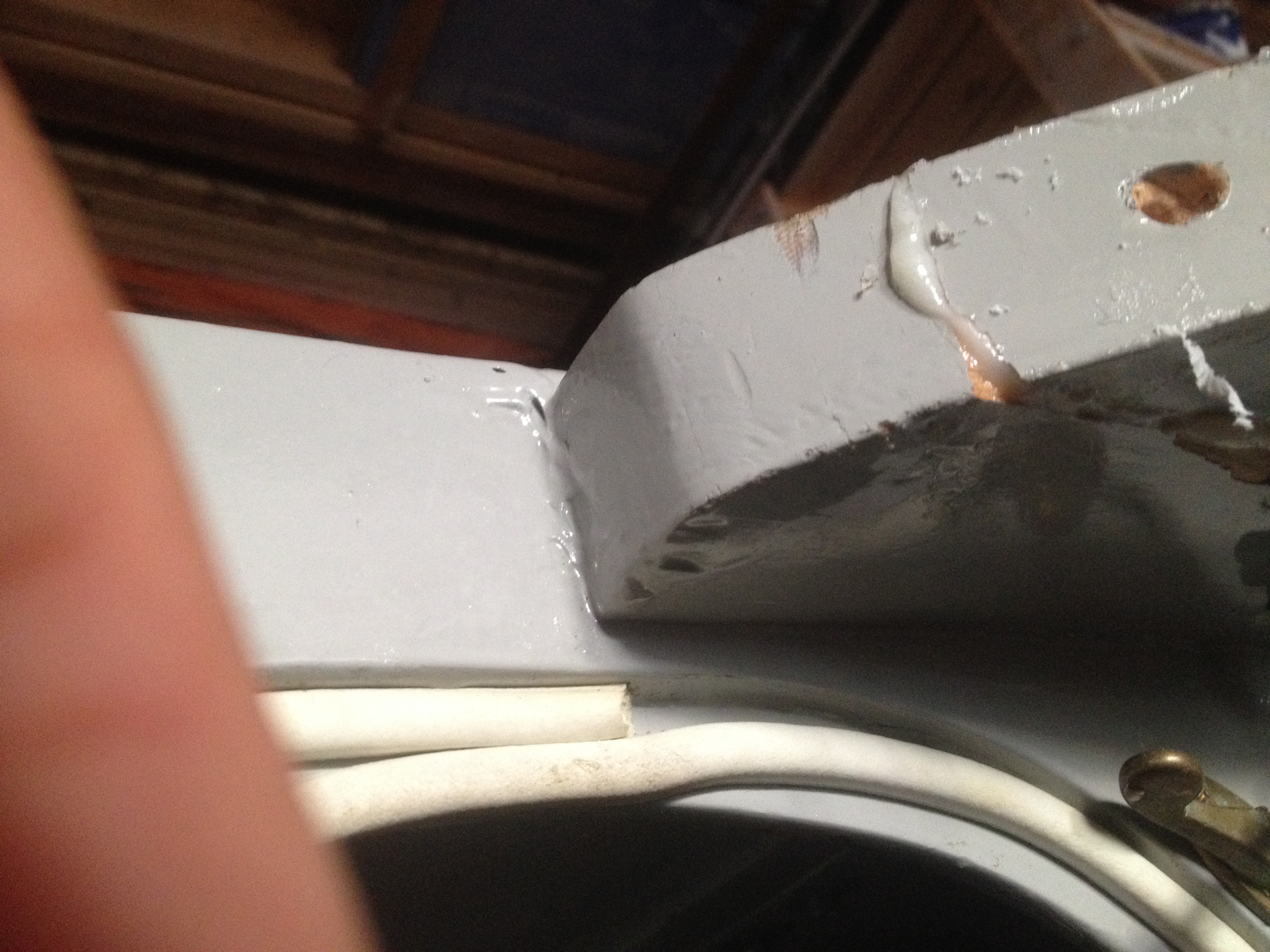

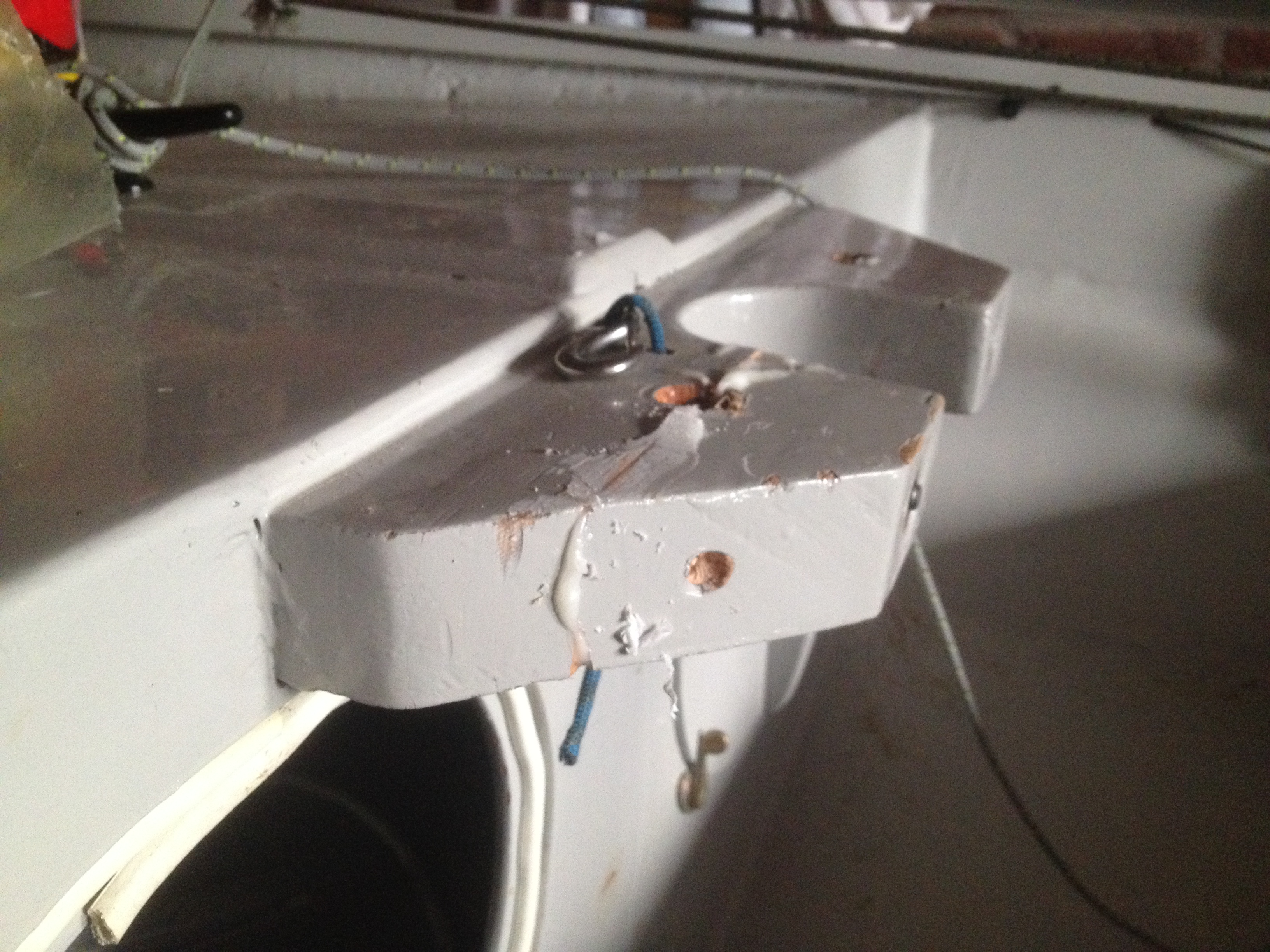

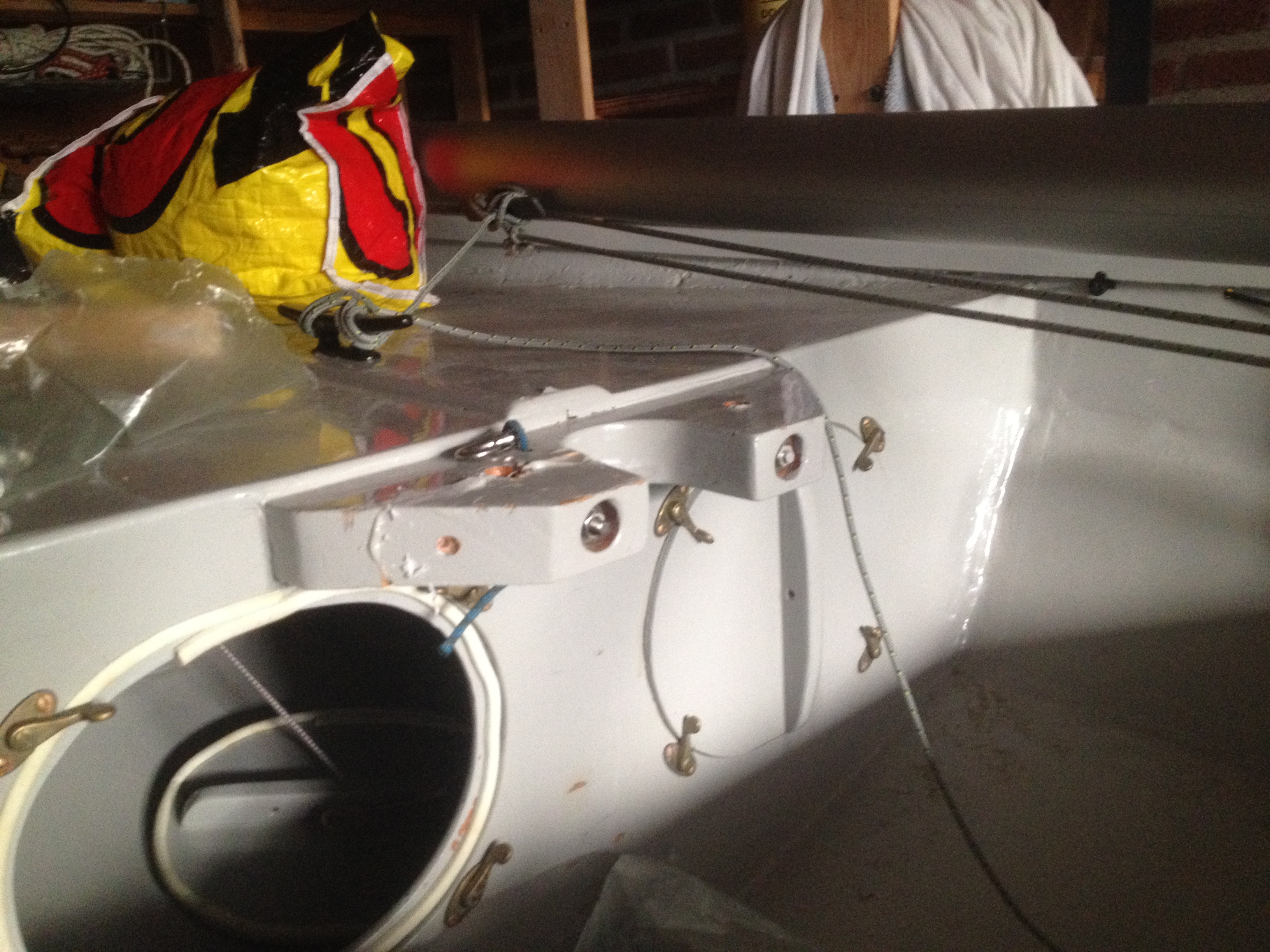

I looked carefully at the mast partner and carefully removed the cracked part from the port-side cheek. It appeared that the oregon pine lamination had sheared off just outside the glue line. This meant that the wood was the weakest part, not the glue itself. I used PolyPox 700 glue to glue both parts together and used an oversized screw as an extra reinforcement.
